mobilephone type rfid handheld nfc reader portable bluetooth reader with bardcode scanner
- Model Number:
- CF-H4050P
- Place of Origin:
-
Guangdong, China (Mainland)
- Brand Name:
-
Chafon
- Type:
-
android bluetooth nfc reader
- Frequency:
-
125KHz,13.56MHz,UHF
- Support:
-
EM4200/ISO14443A/ISO15693/ISO18000-6C(EPC GEN2)
- Working mode:
-
read and write
- Reading distance:
-
1~200cm (depends on the frequency )
- Operation system:
-
Android 5.1
- Standard function:
-
Bluetooth/WiFi/4G,GPS/GPRS
- Battery:
-
:RAM 1Gb/ROM 8Gb
- Ingress protection:
-
IP64
- Technical supoort:
-
yes
- Supply Ability:
- 1000 Piece/Pieces per Month
- Packaging Details
- 1pc/box
- Port
- Shenzhen
CF-H4050P is an Android-based rugged Handheld Barcode Scanner with 4G. With its fast 4G connectivity and powerful Qualcomm processor as well as the comprehensive data capture options,including LF/HF RFID and NFC reading, high-performance 1D/2D,infra-red and sensitive fingerprint scanning, you can find this easy-to-deploy device an exceptionally valuable helper for your workers to increase their efficiency and productivity. With its highly customizable ability, enterprises can deploy this single device in many areas, including retail, warehouse management, logistics,asset tracking, fleet management, health-care and etc.
Most Powerful Application Performance
The CF-H4050P Handheld Barcode Scanner with 4G features the latest and fastest Qualcomm SoC processor, together with 1GB of RAM, 8GB build-in flash storage, plus a SD card slot that can add up to 32GB of memory.
4G LTE - Faster Connectivity
Whether indoors or outdoors, the CF-H4050P Handheld Barcode Scanner with 4G provides enterprises with anywhere, anytime real-time connectivity by the fast 4G LTE celluar network and 802.11 a/b/g/n Wi-Fi support.
Extensive Data Capture Functions
The CF-H4050P Handheld Barcode Scanner with 4G can be integrated with best-in-class Motorola 1D/2D barcode scanning engine, sensitive fingerprint snap-on and GPS. It allows users to choose data collection options as per industry need.

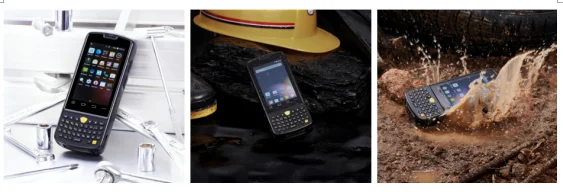

Rugged and Compact
The CF-H4050P Handheld Barcode Scanner with 4G is highly rugged, compact and durable. With an IP64 water and dust proof capability, workers can drop this device on concrete, use it in dusty areas, even get it wet, and still expect reliable operation.
Superior RFID Reading Capability
The CF-H4050P Handheld Barcode Scanner with 4G provides new levels of RFID and NFC reading performance. It can be configured with high-performance LF/HF RFID reading module, or NFC reading module to capture different kinds of information.
Highly Customisable
From a single function device to a fully featured enterprise mobile computer, this device delivers the best possible flexibility and diversity to satisfy a whole variety of application needs.

Physical Characteristics | |||
Dimension | 176mm x 76mm x 29mm/ 6.93 x 2.99 x 1.14in | ||
Weight | 319g/ 11.25oz | ||
Display | 4 in. TFT-LCD touch screen with backlight, 16.7M colours, 480W x 800L (WVGA) | ||
Touch Panel | Rugged dual touch capacitive touch panel | ||
Keypad | Numeric / Qwerty | ||
Main battery: Li-ion, 3200mAh | |||
Expansion slots | 1PSAM, 1SIM, 1MicroSD(TF) slot | ||
Audio | 0.5W speaker, build-in microphone | ||
Interfaces | USB Micro-B | ||
Sensors | Light Sensor, Proximity Sensor | ||
Performance | |||
CPU | Qualcomm 1GHz quad-core | ||
RAM | 1GB | ||
ROM | 8GB | ||
Expansion | Supports up to 32GB Micro SD card | ||
Programming Environment | |||
Operating System | Android 5.1 | ||
SDK | Chainway software development kit | ||
Language | Java | ||
Tool | Eclipse / Android Studio | ||
User Environment | |||
Operating Temperature | -10 to 50℃ / 14 to 122℉ | ||
Storage Temperature | -40 to 70℃ / -40 to 158℉ | ||
Humidity | 5% - 95%RH (Non-condensing) | ||
Sealing | IP64, IEC Compliance | ||
Drop Specification | Multiple 1.2m drops to concrete across the operating temperature range | ||
Tumble Specification | 1000 x 0.5m / 1.64ft. falls at room temperature | ||
Communication | |||
WLAN | WiFi IEEE802.11 b/g/n | ||
WWAN | 4G: TDD-LTE: B38/B39/B40/B41 | ||
GSM/GPRS/EDGE Quad Band (850 / 900 / 1800 / 1900MHz) WCDMA(850 / 1900 / 2100MHz) | |||
Bluetooth | Bluetooth 4.0 | ||
GPS | GPS, AGPS | ||
Barcode Scanner | |||
1D Linear Scanner | |||
1D Laser/CCD | Symbol SE965/EM-1350 | ||
Symbologies | All major 1D barcodes | ||
2D Imager Scanner | |||
2D CMOS laser scanner | Symbol SE4500 | ||
Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec,MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch.Postal (KIX), etc. | ||
RFID Reader (Optional) | |||
LF | |||
Frequency | 125kHz, 134kHz (FDX-B / HDX) | ||
Protocol | ISO11784/5, ISO18000-2 | ||
Range | 3-8cm | ||
LF (with external antenna) | |||
Frequency | 134kHz (FDX-B / HDX) | ||
Protocol | ISO11784/5 | ||
Range | 3-8cm (longer reading distance with the external antenna) | ||
HF | |||
Frequency | 13.56MHz | ||
Protocol | ISO14443A/B, ISO15693 | ||
Range | 3-8cm | ||
NFC | |||
Frequency | 13.56MHz | ||
Protocol | ISO/IEC 18092 (ECMA 340) | ||
Range | 2-4cm | ||
UHF | |||
Frequency | 865MHz-868MHz / 920-925MHz / 902-928MHz | ||
Protocol | EPC C1 GEN2 / ISO18000-6C | ||
R/W ranges | Option1(R2000), up to 4.5m Option2, up to 2m (Ranges depend on tags and environment) | ||
Biometric Fingerprint (Optional) | |||
Sensor | TCS2SS | ||
Sensor type | Capacitive Sensor | ||
Function | Enrollment, compare, deletion etc. | ||
Resolution | 508DPI | ||
Memory | 1,000 PCS fingerprints | ||
Other Modules (Optional) | |||
Camera | 8MP autofocus camera with flash | ||
PSAM | ISO7816 Protocol, 1 PSAM slot | ||
*NOTICE: Product specifications are subject to change without notice. |
Delivery:
We can ship goods by Express, such as DHL,TNT,FEDEX,UPS etc, also can ship goods by air or sea, depends on different goods quantity and package specification.

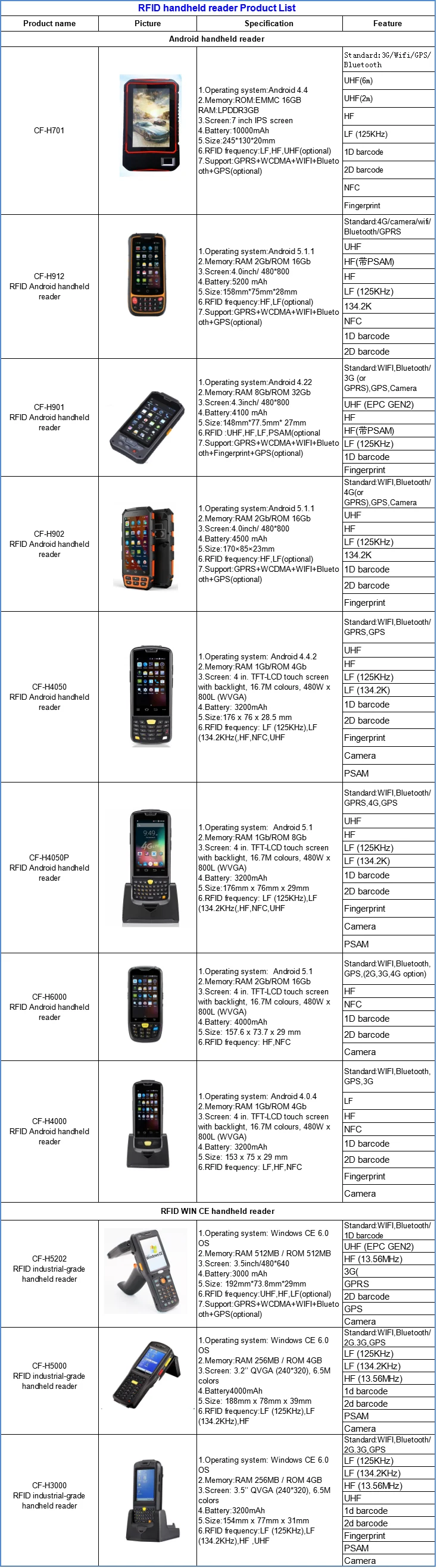

About the RFID handheld reader, we have other kinds with different design, can use for differnent applications.

More related products please refer to the link:
http://chafon.com/product.aspx?cid=290

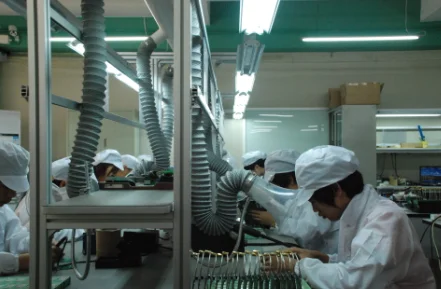

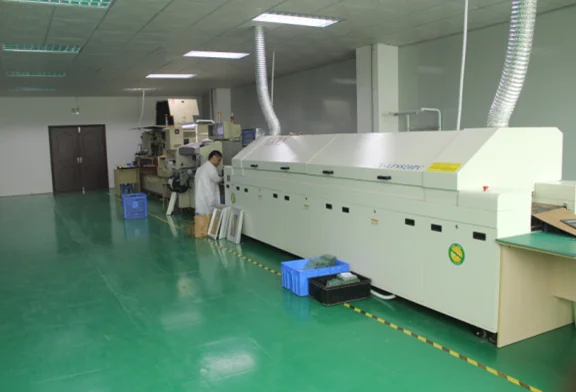

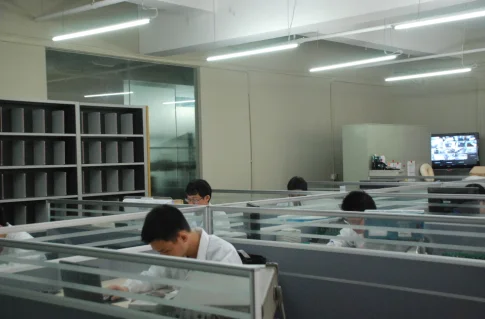

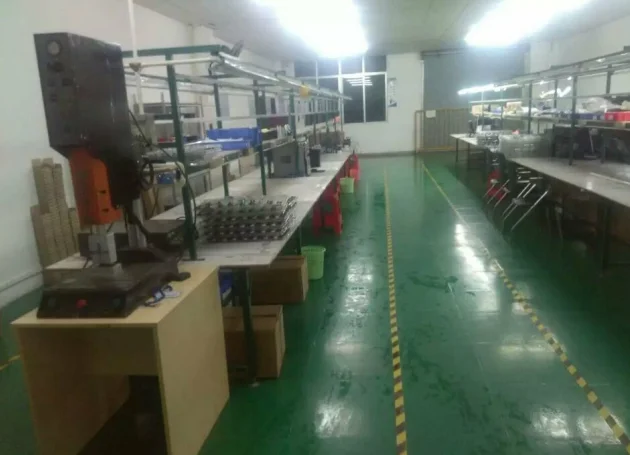

Company profile:

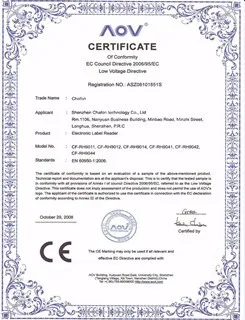

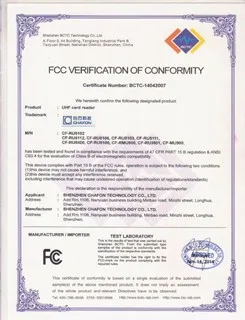

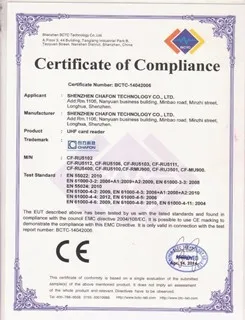

Shenzhen Chafon Technology Co, Ltd. was founded in 2009,we are specialized in RFID products research and develop,and automatic identification technology application and promotion.Company products have won the United States FCC certification,European CE/ETSI certification, and China will WuWei CMII certification which products is exported globally.



Q1. Are you manufacturer?
Yes, we are 10 years professional RFID hardware manufacturer.
Q2. What is your mainly products?
Our products mainly include RFID reader, RFID tag, RFID module and antennas,
include 125KHz , 13.56MHz and UHF three frequency.
Q3. What is your advantage?
We are professional RFID hardware solution provider,
we have strong technical team can provide after sale technical support online,
also can provide customized service.
Q4. How to place order to Chafon?
You can place order to us through Alibaba trade assurance order online.
We also can accept payment by TT,Western Union or Paypal.
